The calibrations widget provides a way for users to control and operate calibration and sequences directly from the dashboard.

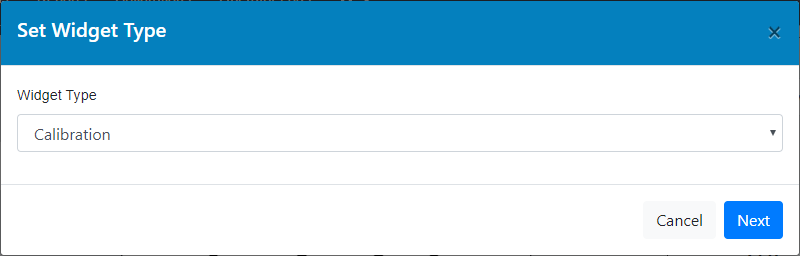

Select the calibration widget type
Select either the Manger or Status display type:
•Manager - A control panel for calibrations. Allows the running of entire calibration sequences or just individual points. A user can monitor the progress throughout.
•Status - A visual widget with no direct interaction. It shows upcoming calibrations and when a calibration is running it will provide a visual progress bar and status.
There are no data sources for this widget. Once the widget is configured, position appropriately and then save the dashboard to view.
In order to run a calibration, you will need a configured Calibration and then use the manager widget in order to start it using the 'Run' button.
Individual points can also be run in the manager widget by selecting 'Show points' on the left of a calibration.
Points can be run the same way as a calibration sequence. When choosing to run a point, the following dialog will be displayed.

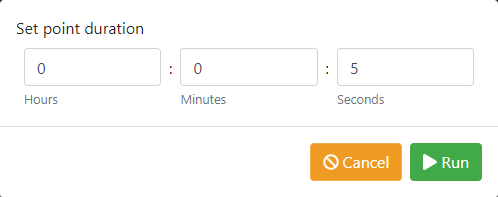

Point duration dialog
This dialog will allow you to specify a custom duration for that individual point (It won't affect future calibrations).
Note that only one calibration can run at any given time. Modifying the dashboard and saving it will cancel any currently running calibration. |
Examples of the widgets are displayed here:
Manager |
Status |

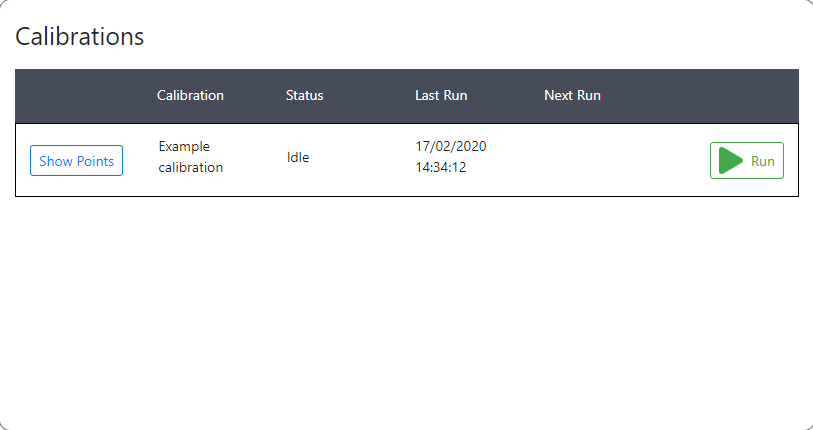

 The manager calibration widget with a calibration. |
 The status calibration wiget with no currently running calibration. |

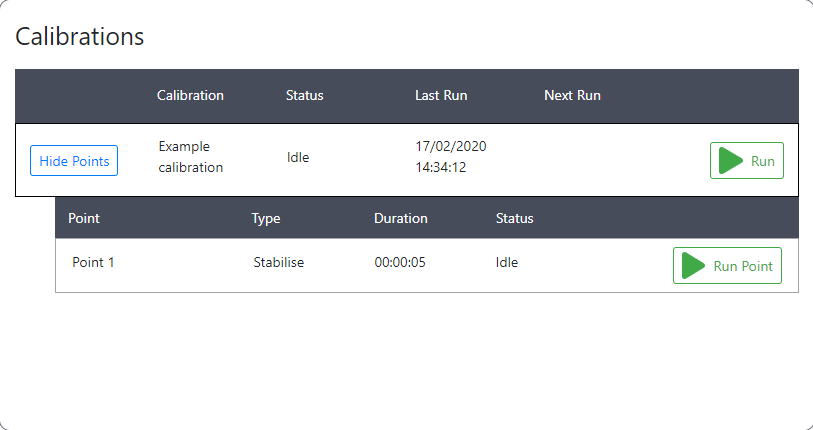

 The manager calibration widget with its points expanded. |

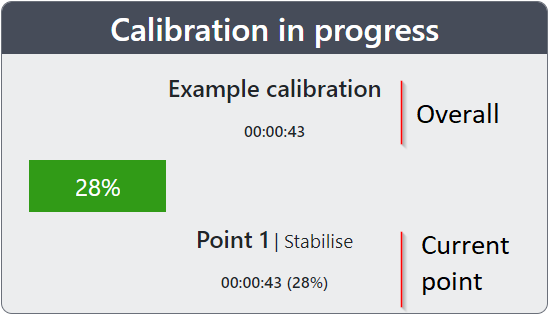

 The status calibration widget displaying the currently running calibration. |
